Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table
Home > Products > Operation table > Others Operation table > Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table

Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table

    Unit Price: 6500~10500 USD
    Min. Order: 1 Piece/Pieces
    Supply Ability: 10000
    Port: Shanghai

Product Description

Product name:
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table

Detail Informations:

JR-9000 Catheterization table adopt the advanced electric mechanic transmission technology, full carbon fibre table top,specially design for various movable medium,small C-arm to imaging of the Cardiovascular, peripheral-vascular,catheterization vascular ang Jography and DSA. The product conform the features of logical structure, easy control,graceful outlook, and the function is advanced and achieved the quality of Jatamalional.According to the clinical practice,it is confirmed as the best quality products in China

1. Integrated electric operating table
With advanced production technology, engineers make it an art and perfect every detail. The base is made of a large number of high quality 304 stainless steels that are completely solid and sturdy.

2. High quality
Product is easy to operate,strong versatility,wide application ,material selection,workmanship excellent,quality
reached the international level.

3. More Features
Manual: fold on the headboard, built-in waist bridge, leg board fold
Electric: lifting, folding on the back plate, folding on the leg board, single left leg folding up and down, single right leg folding up and down, panning, leaning back and forth, left and right tilting, one button reset, "V" and revised version "V", etc.

4.Safe and reliable

Battery available
With foot brakes for easy control of the operating bed

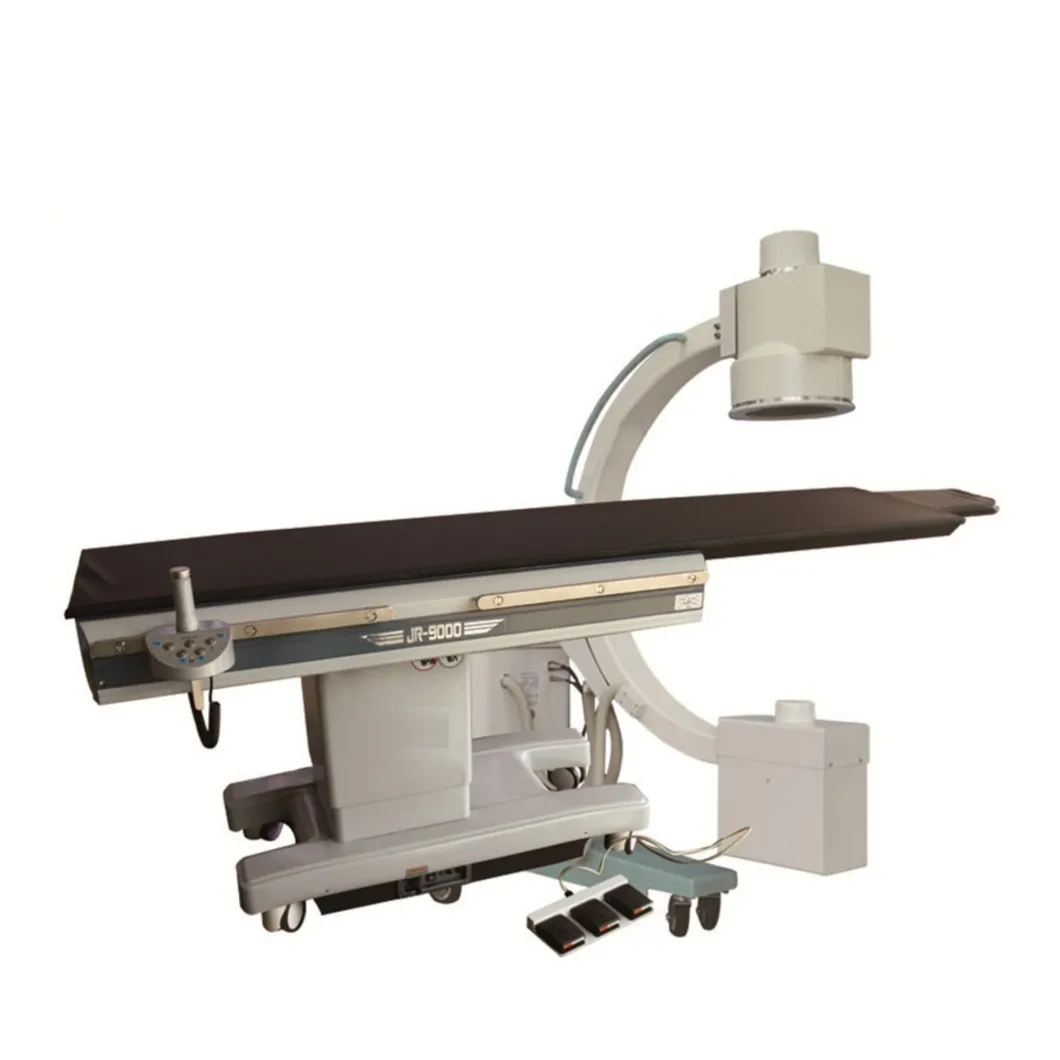

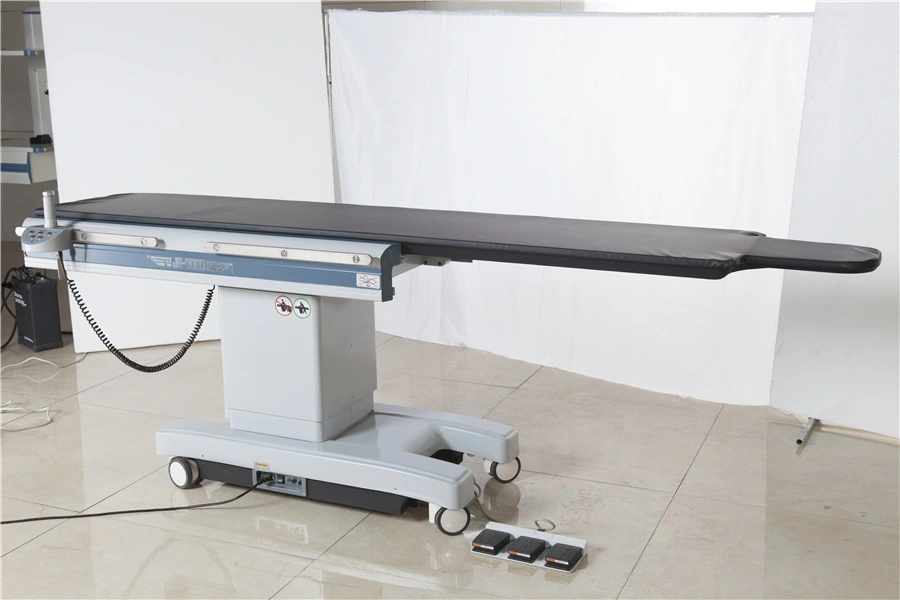

Product Photo:
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table


Parameters:
Table board materialcabon fibre
Whole length2500±10mm
Length of radiolucent board1750±10mm
Length without material inspection1200±5mm
Whole width685±5mm
Width of radiolucent board 465mm
Thickness40mm
X-ray absorption conefficient (aluminium equivalent)≤0.44mmAL
Max. loading240kg
Horizontal movementmanual
locking deviceelectromagnetic locking
longitudinal movementmanual
Move route250±20mm
Locking deviceelectromagnetic locking
Max.head protract1880±20mm
Max.foot protract1050±20mm
Vertical movementElectric
Min. Bed height from the ground 750±20mm
Max.Bed height from the ground1100±20mm
Move route350±20mm
average velocity

8mm/s

Bed surface shifting/Horizontal movement/Locking controllor
average velocity8mm/s
Table body lockingElectric
Big Four direction wheelfree moving
Inner configurate DC24V

Panasonic lead-acid battery

Single-phase Alternating Current

220VAC 50/60Hz

Input maximum power

300VA

Protective tube

F5AL250V(5*20mm)

Standard accessories

Memory foam mattress-1pcs

Arm supports-1pairs




Details:
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table



Company information
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table

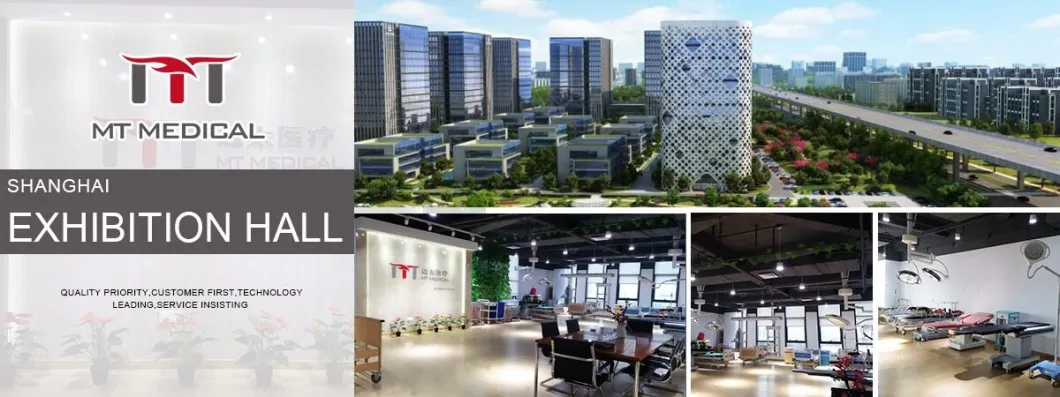

HEFEI MT MEDICAL CO.,LTD. is located at economic development zone,Hefei city,Anhui province,China. We set up a showroom in Shanghai ,and the factory is located at Yanzhou city,Shandong,China. we have more than 100,000 square meters workshops.
From 1998,we are working to research and develop Operation table,Operation lamp,Ceiling pendant,Hospital bed,Patient monitor,medical stretcher,Medical trolley,x-ray film viewer,medical cabinet, and other medical furnitures.our products were sold to the middle east,Southeast Asia,the Commonwealth of the Independent States,Africa,South America and some European markets.
M-strive to technical innovation , T-guard life.
Learn to be a decent person before learning how to do things, In Good Faith Cooperation,Sincerely make friends,To create a win-win situation. This is the cornerstone of our eternal achievement.

MT MEDICAL supply best products and service for you.

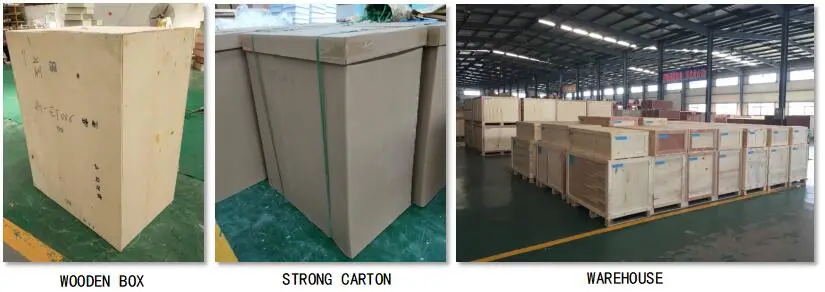

Packing&shipping
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table

Our Factory:
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table

Our services

Are you finding a professional manufacturer can offer you high quality after sales service?

Are you finding European&American brand is very expensive?

What about a person can help you solve with everything and make you sit down and relax?
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table
Certification
Full Carbon Fibre Interventional Imaging Table C-Arm Compatible Operated Table

FAQ

Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.

Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485

Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.

Q: What is your Payment term?
A: 1.L/C at sight;
    2.T/T:30% deposit by T/T,70%balance by T/T before shipment
    3.Trade term:EXW, FOBShanghai or CIF&CFR

Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
    2.All of the productions are inspected carfully by QC before delivery.

Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit;
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order

Q: What is your Min.order?
A: There's no minimum quanti
