Ce ISO Gynecological Electrical Obstetric Examination Bed Hospital Operating Table
| Unit Price: | 10000~13000 USD |
|---|---|
| Min. Order: | 1 Piece/Pieces |
| Supply Ability: | 10000 Units/Month |
|---|---|
| Port: | Shanghai |
Product Description

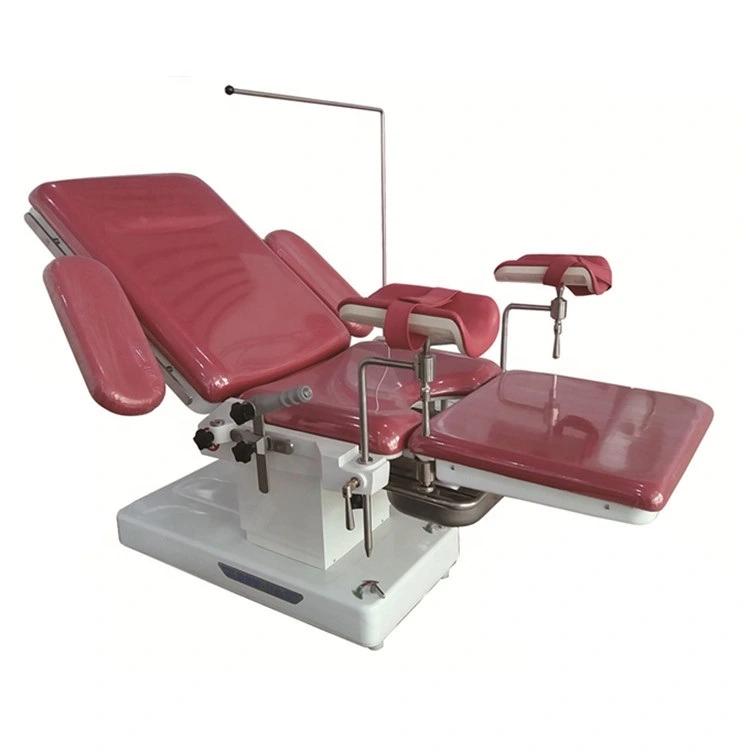

CE ISO Gynecological Electrical Obstetric Examination Bed Hospital Operating Table
Product description
1.The main body is made of 45# steel. The appearance parts are made of expoxy steel and 304 stainless steel. The base cover is high quality ABS
2.Using imported motors with low noise, stable performance. Precise positioning,strong thrust,
3.The unique three-layer structure has achieved thermal insulation and cushioning,The minimum height 550mm platform,The platform divided into backplane, seat plate and footboard. Through the operation handle,the upper and lower sides of the back plate can be changed, the bed will be tilted back and forth, so that the doctor can get an ideal surgical location and make the patient get comfortable seats.
4.The newborn baby's chassis can be rotated, which can correspond to the side care. The whole bed is running smoothly without noise and vibration
Technical data
| Material | |
| Main body | 45#steel |
| Base cover | ABS |
| Sizes And Functions | |
| LWH | 1080*2058*550mm |
| Minimum height(include mattress) | 550±10mm |
| N.W | 305KG; |
| Power: AC 230V 2.5A 50Hz; | 300kg |
| Lift distance | 360±10mm( electric) |
| Back section | up 60°±2°(electric); down 10°±2°( electric); |
| Seat section | up 25°±2°(electric) & down 25°±2°(electric) |
| Foot support plate section rotation | left 0°~33°±3°(electric); right 0°~33°±3°(electric). |
| Foot support plate | 0°~90°±2°(Manual gas spring) |
| Leg section | 75°±2°(manual) |
| Rotation angle of side armrest | 180° |
| Tray support plate moving distance | 150±3mm(manual) |
| Tray support plate rotation | 90°±3°(manual) |
| Translation distance of rotary tray support plate | 60±5mm(manual). |
Rated products
Package
Certification
Company information
HEFEI MT MEDICAL CO.,LTD. is located at economic development zone,Hefei city,Anhui province,China. From 1998,we are
working to research and develop Operation table,Operation lamp,Ceiling pendant,Hospital bed,Patient monitor,medical
stretcher,Medical trolley,x-ray film viewer,medical cabinet, and other medical furnitures.
our products were sold to the middle east,Southeast Asia,the Commonwealth of the Independent States,Africa,South America
and some European markets.
The products were approved by CE,ISO13485.
Our after-sales team will resolve your problems in time within 24hours.
M-strive to technical innovation , T-guard life.
Learn to be a decent person before learning how to do things, In Good Faith Cooperation,Sincerely make friends,To create a
win-win situation. This is the cornerstone of our eternal achievement.
MT MEDICAL do our best products and service for you.
Exhibition
FAQ
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: What is your Payment term?
A: 1.L/C at sight;
2.T/T:30% deposit by T/T,70%balance by T/T before shipment
3.Trade term:EXW, FOBShanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after
receiving the deposit;
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days
,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimal quantit
Product Categories : Operation table > Obstetric bed
